113L050
Timing Belt L 0.5 x 11.3in PL T30

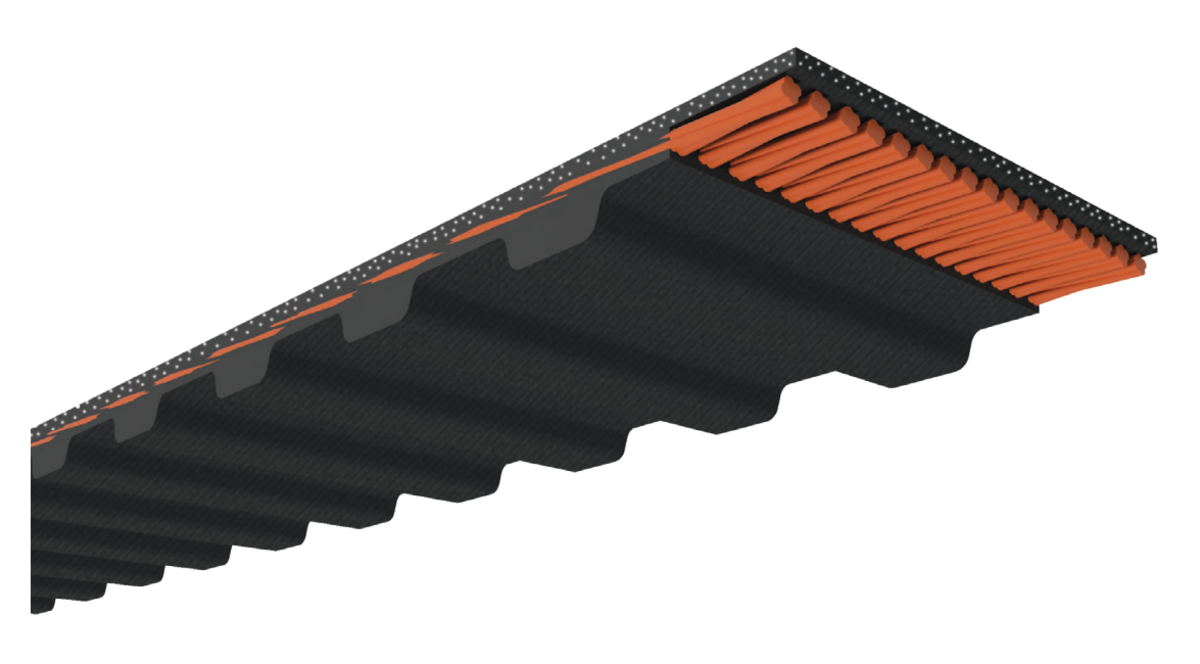

D&D belts meet or exceed ISO standards and are engineered to match or outperform comparable belts from all other major manufacturers. They feature a trapezoidal tooth profile for smooth engagement, quiet operation, and great power transmission efficiency. The low-profile tooth design offers a broad surface area at the tip, providing strong support and stability. Built from a heat- and oil-resistant rubber compound and high-strength fiberglass tensile cords, each belt delivers lasting performance and reliability. Elite Series developed through advanced manufacturing technology. Engineered from a heat- and oil-resistant rubber matrix reinforced with high-strength fiberglass tensile cords. Dura-shield fabric tooth cover.
| Specifications | |||
|---|---|---|---|
| Angle | 90 | Cord Type | Fiberglass |
| Effective Length (in) | 11.3 | Effective Length (mm) | 287 |
| Notched | false | Section | L |
| Outside Circumference (in) | 11.3 | Outside Circumference (mm) | 287.02 |
| Top Width (in) | 0.5 | Top Width (mm) | 12.7 |
